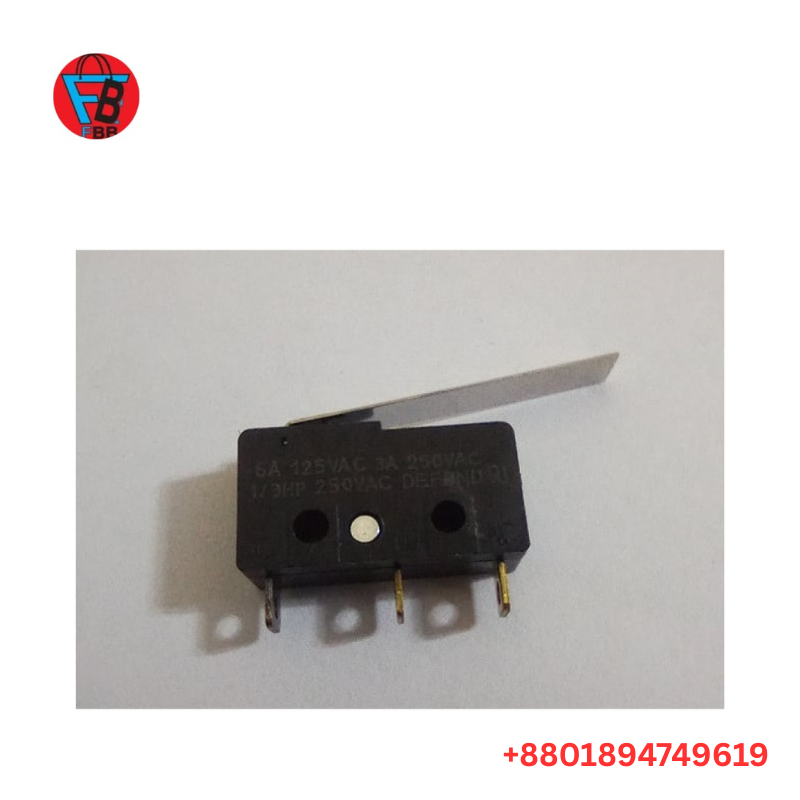

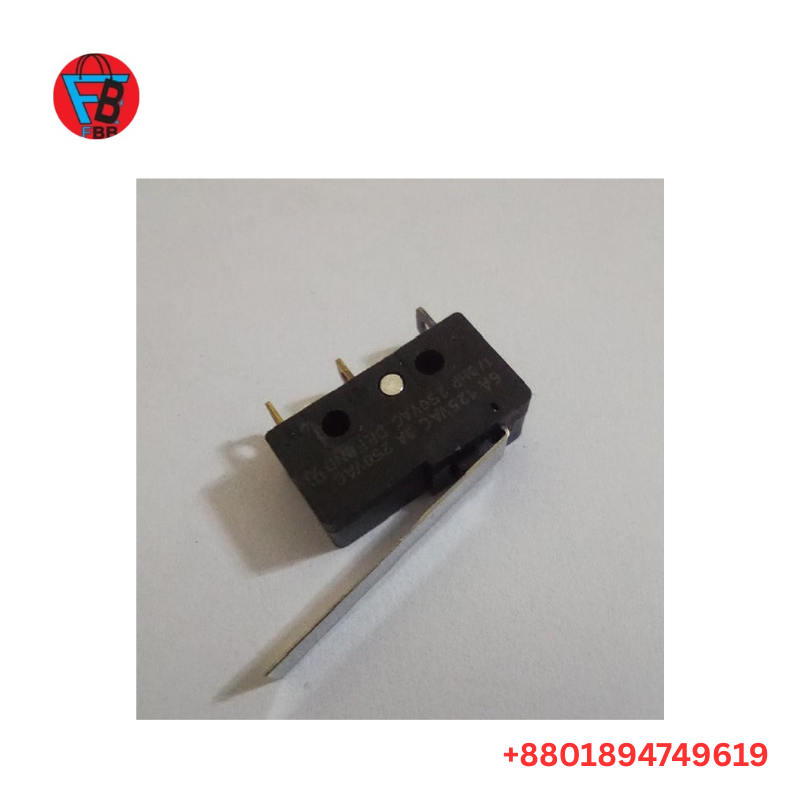

Micro Limit Switch

Description

Condition: Brand New Actuator Type: Long Straight Hinge Lever Terminals: 3 Contact Type: Normally Open Button plastic: PC or Nylon Spring Materials: Tungsten steel Rating: 3A 250VAC, 6A 125VAC Operating temperature: -25 to + 80C Contact configuration: SPDT Switch Body Size: 20x 6.35x 11mm(Approx.) Fixing Holes Dia: 2mm Button Height: 1.5mm Long Straight Hinge: 26.5mm Dielectric intensity: ≥1000V AC/Min Contact Resistance: OF≤0.75N:≤30mΩ,OFF≤0.75N:≤50 mΩ Life: Mechanical≥1,000,000cycles; Electrical≥10,000cycles Insulation Resistance : ≥100MΩ Remarks: 1. Product delivery duration may vary due to product availability in stock. (Standard Delivery Time 3-5 days). 2. Delivery charge will be at actual for heavy weight and large machinery items that will require individual transport. 3. Rapidly price changing machinery products price can changes anytime without prior notice/update in the site. 4. The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
