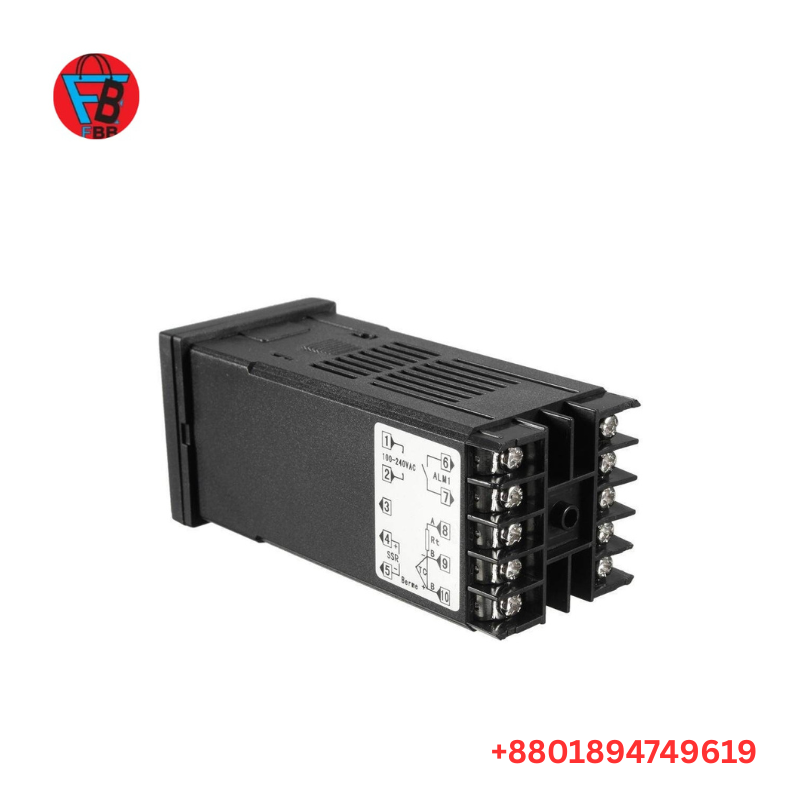

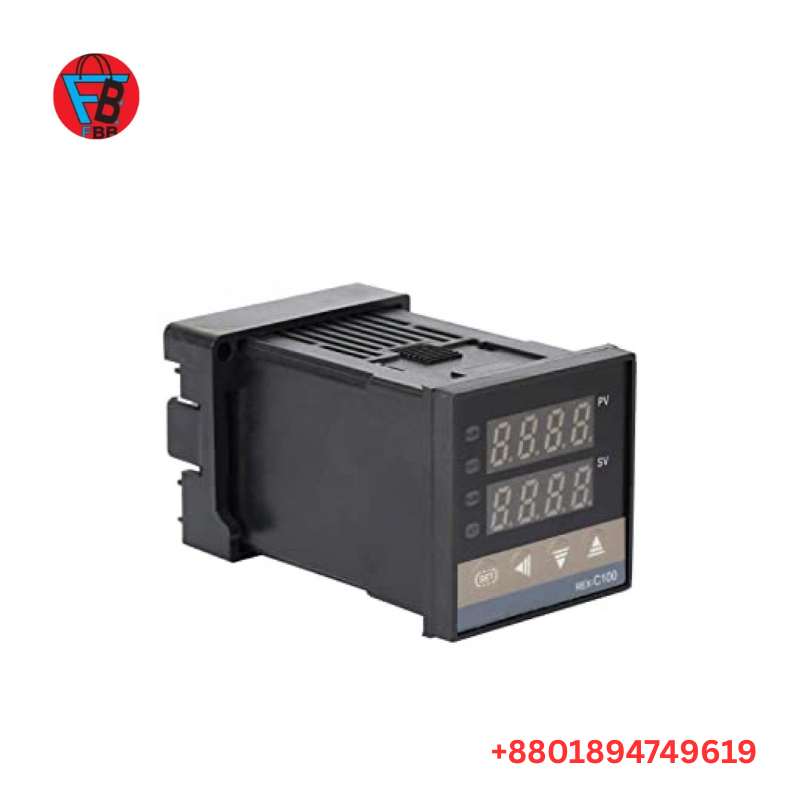

Digital LED PID Temperature Controller REX C100

Description

Name : Temperature Controller Model: REX C100 Relay output: contact capacity 250V AC 3A (resistive load) Type: K Process value (PV), Setting value (SV) Brand: RKC Range: Temperature range:0-400 Celsius Setting value (SV): identical to measuring range (PV) Color: Black Size: 96mm*96mm*100mm Cold-end compensation tolerance: ±2°c(can be modified by software in 0~50°c) Resolution: 14 bit Sampling cycle: 0.5 Sec Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control Relay output: contact capacity 250V AC 3A (resistive load) Alarm function output: 1 way Contact capacity of output: 250V AC 3A (resistive load) Setting value (SV): identical to measuring range (PV) Proportional band (P): 0~full range (ON/OFF control when set to 0) Integral time (I): 0~3600 sec (No integral action when set to 0) Derivative time (D): 0~3600 sec (No derivative action when set to 0) Heat-reset proportional cycle: 1~100 sec Detective temperature range:0 to 400°c Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: 10 VA Service environment: 0~50°c environment with no corrosive gas 30~85% RH Power supply:100-220V AC 50H Remarks: 1. Product delivery duration may vary due to product availability in stock. (Standard Delivery Time 3-5 days). 2. Delivery charge will be at actual for heavy weight and large machinery items that will require individual transport. 3. Rapidly price changing machinery products price can changes anytime without prior notice/update in the site. 4. The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
